To read steel tongue drum notes, identify whether the labels show scale degrees or instrument positions, match them to the maker’s pitch chart, and learn a steady pulse before playing a melody. Start with one clear note, then a two-note loop and a four-note phrase. A few gentle sounds can become a quiet companion to a morning cup of tea, a pause after work, or time shared with someone you love.
Find the note map for your own steel tongue drum

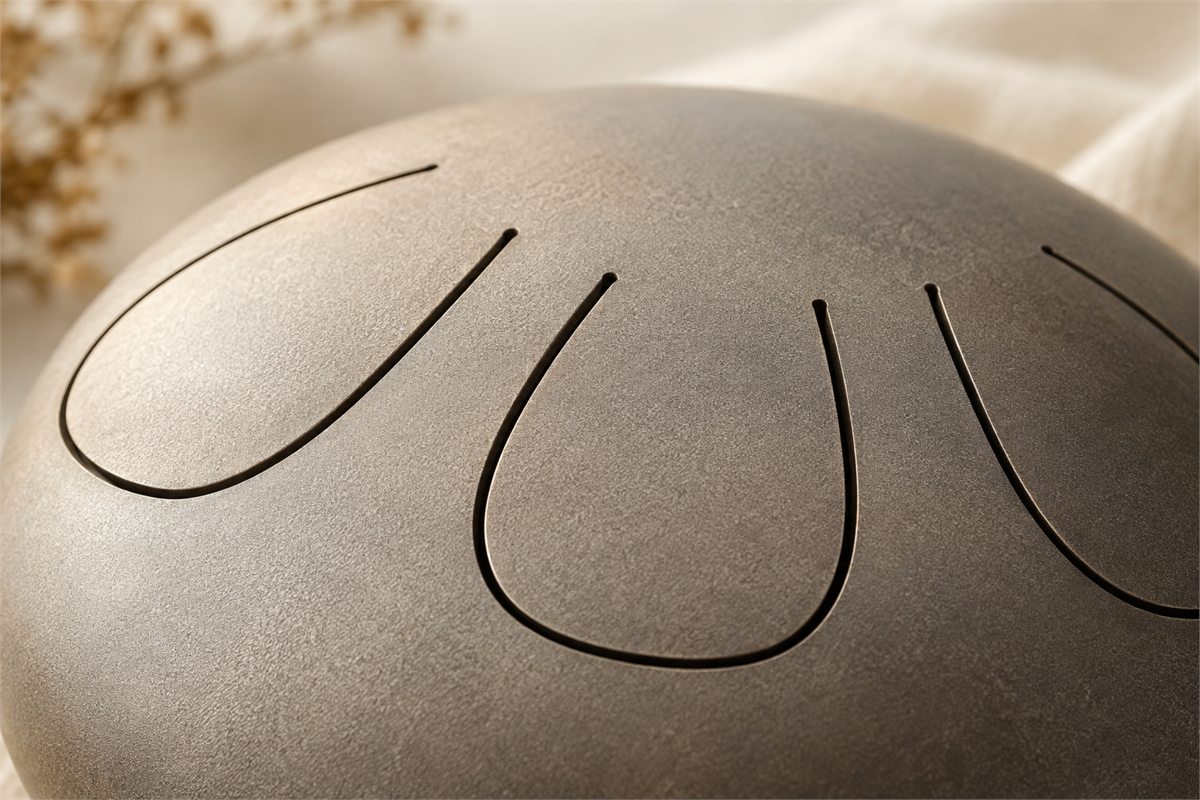

A steel tongue drum (钢舌鼓, gāng shé gǔ) makes pitched sounds through vibrating metal tongues cut into its body. Each tongue is tuned to a particular pitch. The body helps the sound resonate. Tongue geometry, thickness, material and tuning all contribute; size alone is not a reliable way to identify every note.

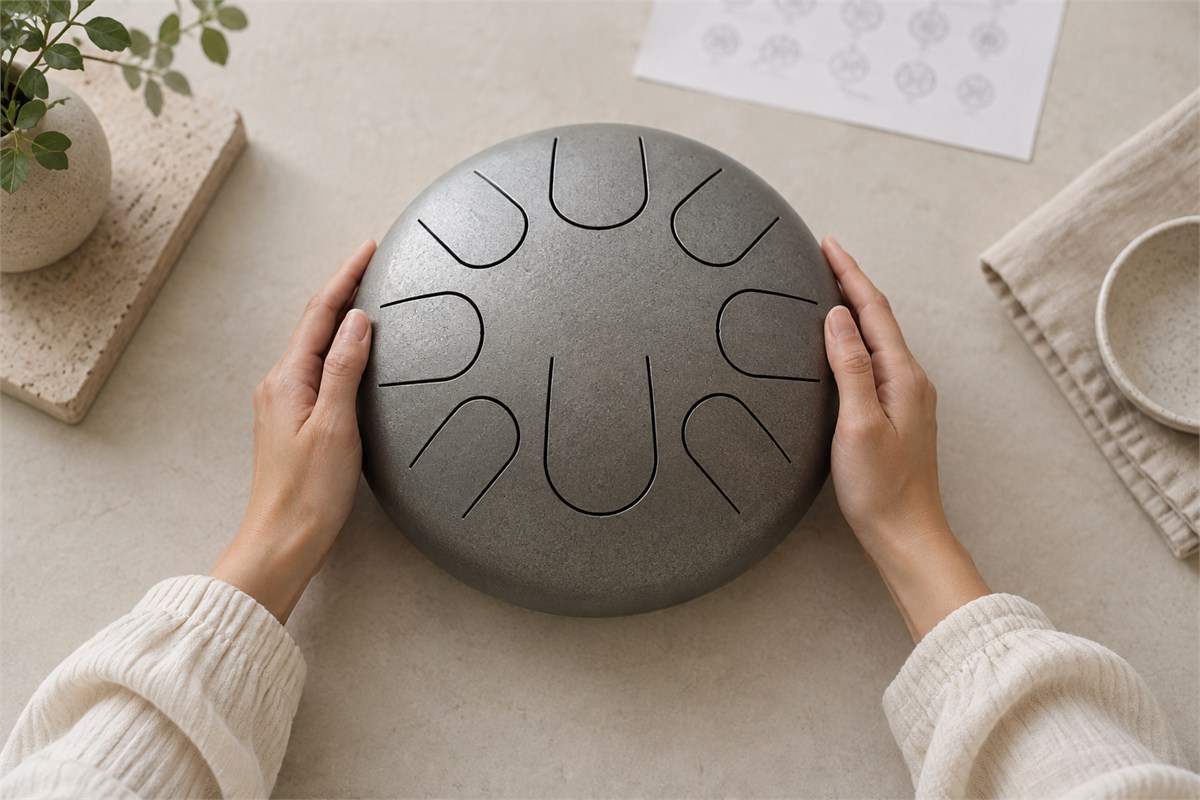

Look for the exact model’s scale card, engraving, diagram or manual. Write down the available pitches, including octave numbers and sharps or flats. Keep the same comfortable orientation during practice. Follow the maker’s diagram rather than assuming the central tongue is the root, the lowest note faces you, or pitches rise clockwise.
In Chinese product descriptions, names such as kōng líng gǔ (空灵鼓), sè kōng gǔ (色空鼓) and wàng yōu gǔ (忘忧鼓) can describe this instrument family. The actual pitch chart remains the useful guide to the instrument in front of you. A handpan has formed tone fields rather than cut tongues; Hang is PANArt’s instrument name, not a name for every handpan or tongue drum.
Dennis Havlena completed his first Hank drum in February 2007, sharing an approach that helped make this inviting sound accessible to more players. It belongs to a wider family of metal tongue designs, including Jim Doble’s Whale Drum. Today, the pleasure of the instrument is close at hand: a light touch, a ringing note, and room to create your own small melody.
Read numbers, letters and octaves
Read a position diagram as a map of this particular model: a marked tongue tells you where to strike. Read jianpu as pitch and rhythm. A letter-only sequence tells you note order, but you still need written durations or a clearly demonstrated rhythm to know how long each note lasts. Parentheses, vertically stacked notes and arrows follow the publisher’s legend.
Numbered musical notation, jiǎnpǔ (简谱), uses 1–7 for scale degrees. On a major-key score, 1 is the tonic: C when 1=C, D when 1=D. Maker-specific numbered tabs may instead label tongue positions. A sticker numbered 8 does not automatically mean the same thing as a high 1 in jianpu. Check the legend before matching a score to the drum.
| Scale degree | Solfege | Pitch when 1=C, in C major | Pitch when 1=D, in D major |
|---|---|---|---|
| 1 | Do | C | D |
| 2 | Re | D | E |
| 3 | Mi | E | F♯ |
| 4 | Fa | F | G |
| 5 | Sol | G | A |
| 6 | La | A | B |
| 7 | Ti | B | C♯ |
Letters A–G identify note names. C4 and C5 are C in different octaves; the 4 and 5 identify octaves, not beats. In jianpu, a dot above a number raises it by an octave and a dot below lowers it by an octave. Two dots indicate two octaves. These octave dots differ from a duration dot placed to the right of a note.
A C-major pentatonic collection uses C, D, E, G and A: degrees 1, 2, 3, 5 and 6. The complete C-major scale also includes F and B. C major and D major are seven-note major scales; a drum labelled C or D can contain a selected subset, repeated pitches in different octaves, or another maker-defined collection. Count the actual pitches rather than inferring the scale from an 8-, 11-, 13- or 15-note label.
Understand beats, rests and sustained notes

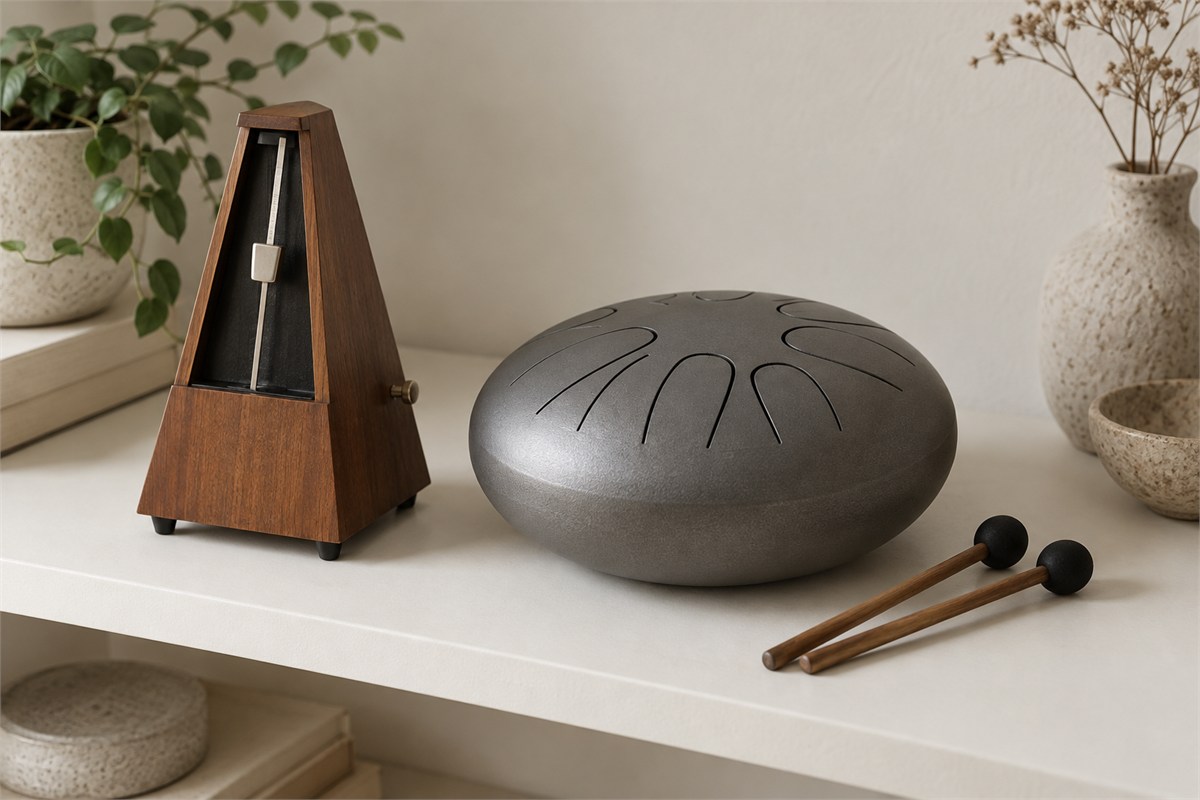

For the examples here, use 4/4 time with a quarter note as one beat. Count “1, 2, 3, 4” in each bar. A metronome at 60 BPM gives 60 quarter-note beats per minute: one beat each second. Try 50–60 BPM if that gives you more time to locate the next tongue.
| Jianpu mark | Meaning in these 4/4 examples | What to do |
|---|---|---|
| 5 | One quarter-note beat | Strike once on the beat |
| 5 – | Two beats | Strike once, let the note continue |
| 5 – – – | Four beats | Strike once, count four beats |
| One underline | Eighth-note duration | Count two subdivisions per beat |
| Two underlines | Sixteenth-note duration | Count four subdivisions per beat |
| 0 | A rest | Count its duration without a new strike |
| | | A bar line | Continue into the next measure |
A dash after a jianpu note extends its duration; it is not a rest. A dot to the right adds half the note’s duration. A tie connects the same pitch across two durations: strike the first note and count the combined length without striking again. A slur connecting different pitches asks for a connected musical phrase; those different notes still need to sound. Tabs can use different conventions, so read their legend.
Dynamic marks help shape a phrase: p asks for a softer sound, f a stronger sound, and > an accent. Make accents with a controlled change in touch. A repeat mark with two dots and a double bar asks you to return to the matching repeat start, or to the beginning when no start is marked. R and L indicate suggested right and left hands, not pitches. Later, add a small grace note before a main note, or explore dotted and syncopated rhythms one short pattern at a time.
Make a clear, gentle sound

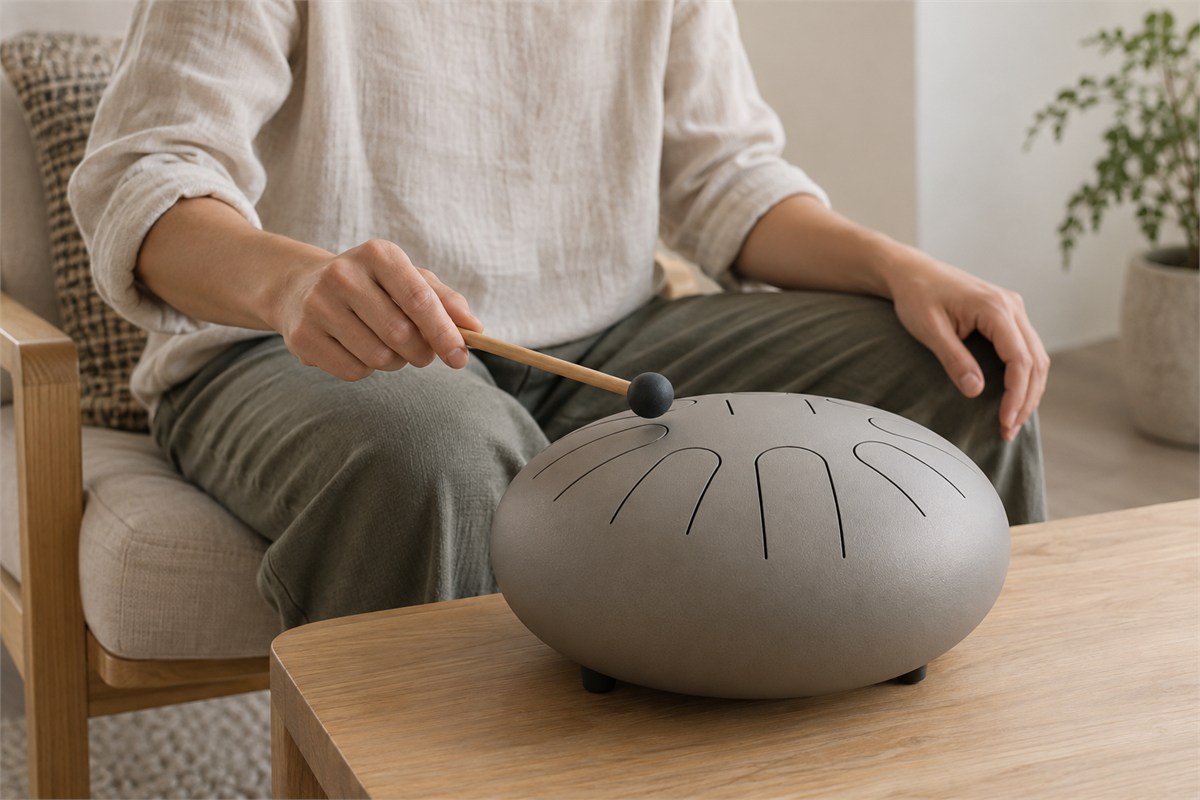

Set the drum on its intended feet, a suitable lap position or a compatible support. Leave the sound opening clear and keep support away from the tongues. Sit with comfortable reach, relaxed shoulders and a neutral wrist. Use the maker’s recommended soft mallets, holding them securely without squeezing. A comfortable balance point matters more than a fixed grip at exactly one-third of the handle. Let a small, relaxed movement bring the head to the tongue, then release it immediately.

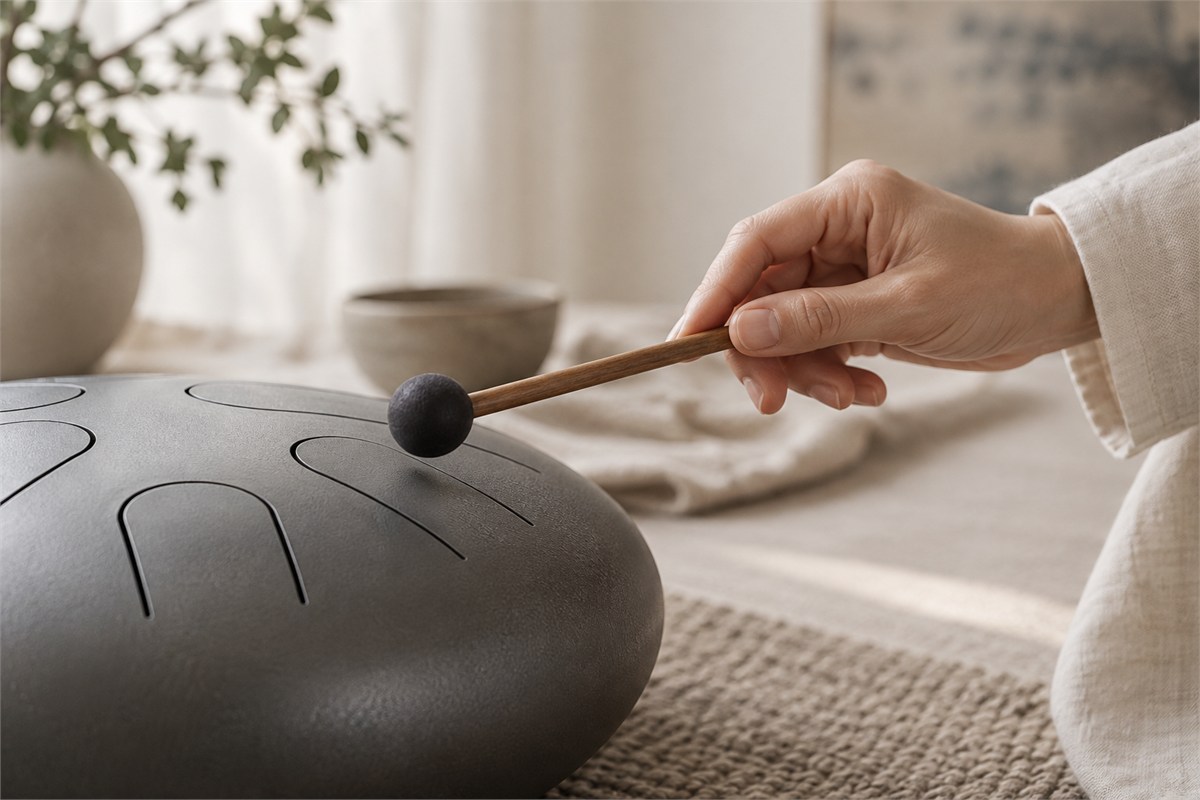

Find the responsive striking area with light taps and the maker’s guidance. The sweet spot varies by design and tongue; a sticker or geometric centre is not a universal target. Pressing a mallet against the metal stops vibration and produces a dull sound. More force is not the remedy for a poor contact point. If a note sounds dull, first check release, contact point and the sound opening. For a persistent buzz, check that permitted removable parts are seated correctly and that nothing is touching the tongue. Ask the maker about a continuing fault rather than bending or filing a tongue yourself.

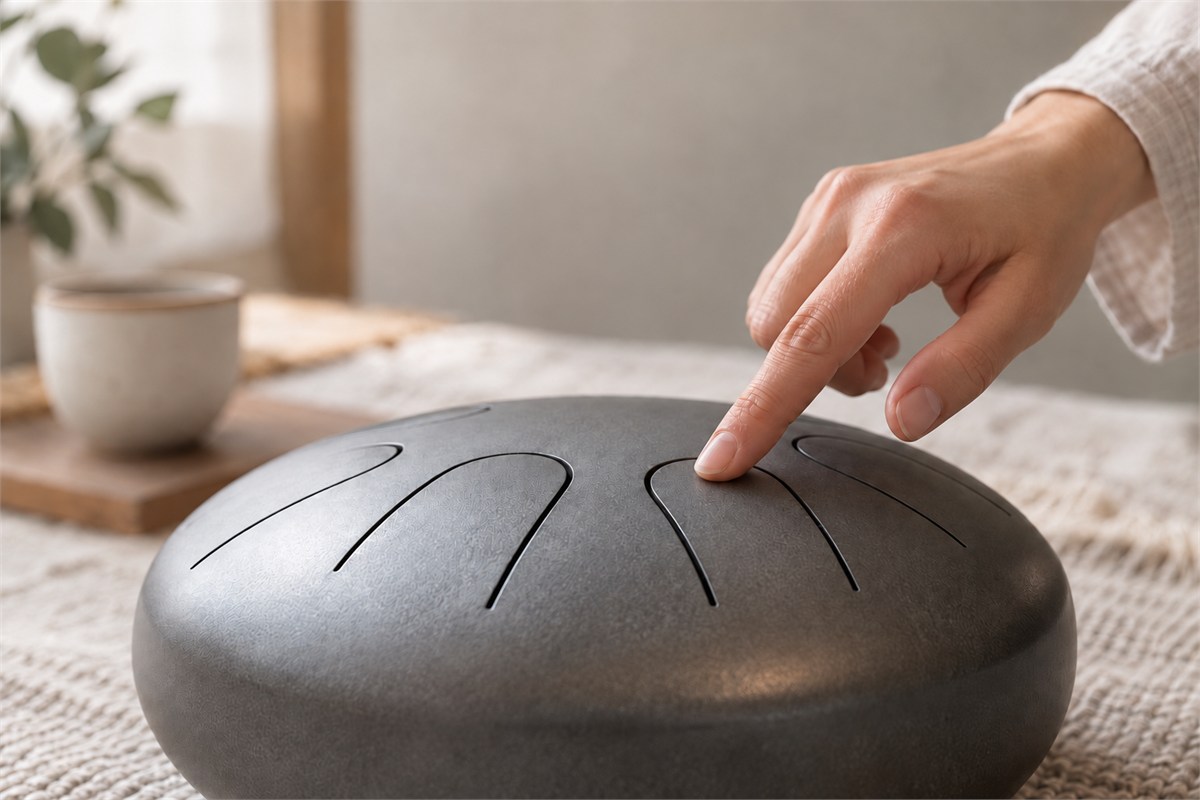

If the model supports finger playing, try a light touch with the recommended part of the finger and a quick release. Mallets and fingers offer different colours, and you can choose the method that feels comfortable and sounds clear. Stop and rest if your hand or wrist hurts. Keep breathing naturally.
Let successive notes overlap when the phrase calls for it. You do not need to wait for every sound to disappear before the next beat. When you want a shorter ending, lightly damp the sounding tongue using the maker’s technique. Damping is a musical choice, not a requirement after every note.
Exercise 1: single notes and ascending patterns

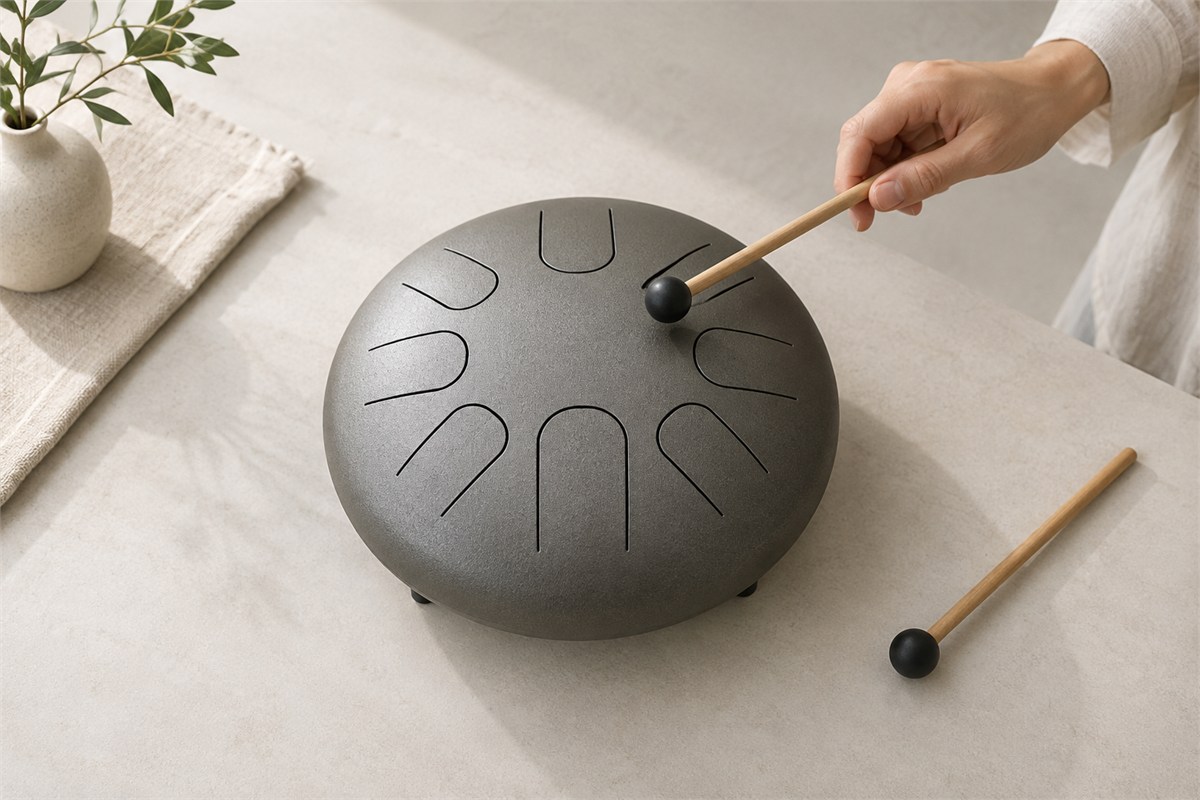

Choose one available note. Play four gentle quarter-note strikes in 4/4, first with one hand and then the other. Alternate R–L–R–L for another bar. Listen for equal spacing and a clear release rather than identical loudness at all costs.
Next, follow your chart from the lowest available pitch to the highest and back. For a major pentatonic drum with the necessary range, try 1 2 3 5 | 6 5 3 2 | 1 – – –. Each plain number lasts one beat and each dash adds one beat. This three-bar exercise stays within degrees 1, 2, 3, 5 and 6. If your instrument lacks a listed degree or octave, choose a smaller pattern using its actual notes.
Start with a slow pass, allowing about two seconds between strikes if that helps you locate the next tongue. Then move to one strike per metronome beat. Use whichever hand assignment allows an easy movement across your layout. Try a slightly growing sound on the ascent and a softer return. Record one pass and listen for rushed transitions, missed tongues or a grip that chokes the resonance.
Exercise 2: two-note loops

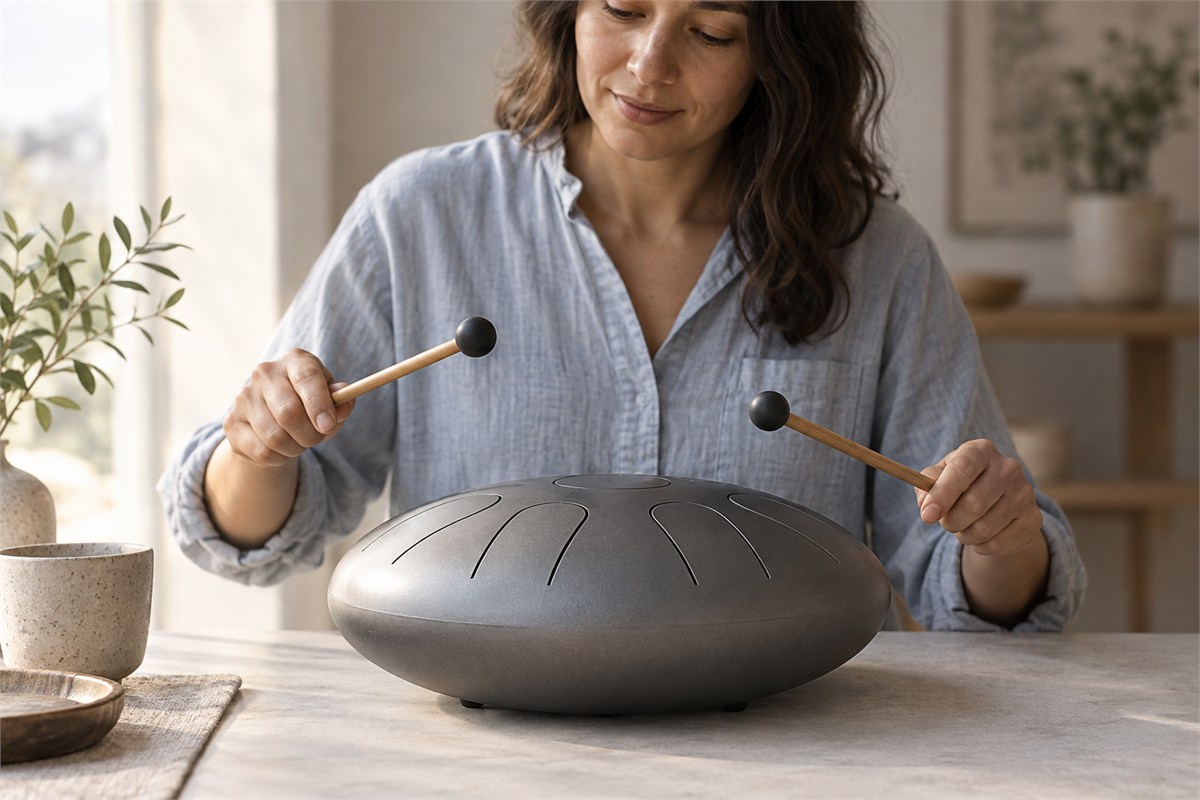

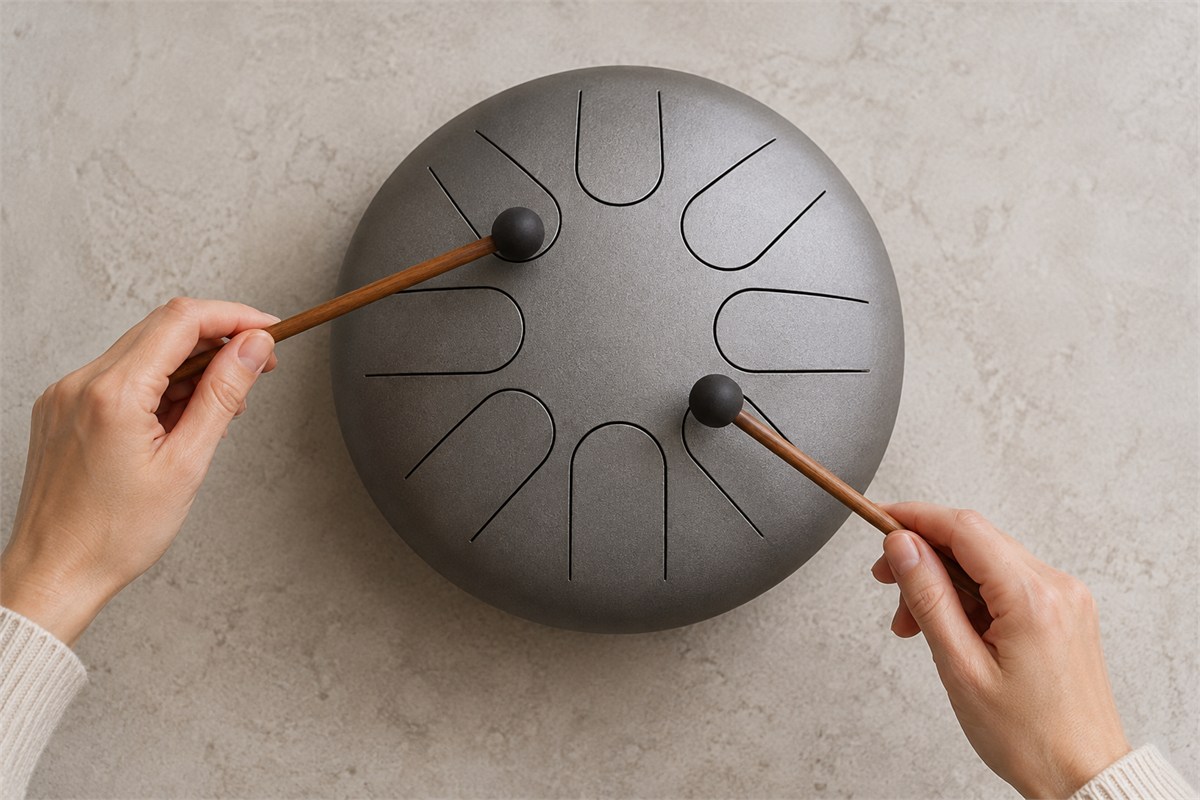

Choose two comfortably reachable notes, such as degrees 1 and 2 when available. Play 1 2 1 2 | 1 2 1 2, one strike per beat. Repeat with R–L–R–L, then start with the left hand. Here a two-note loop means a repeating sequence using two pitches, not two pitches struck simultaneously.
Keep the same two pitches and try 1 1 2 2 with R–R–L–L. These are separate strikes; they are not rapid doubles squeezed into one beat. Then add space with 1 2 1 0. Count the rest as carefully as a sounding note. Try a gentle accent on beat 1, then beat 3, keeping the other strokes softer.
After a steady, comfortable repetition, try increasing the metronome by 5 BPM. Return to a slower setting whenever tension or uneven timing appears. Tempo is a practice tool, not a deadline. Add a third pitch only after the two-note pattern feels familiar.
Exercise 3: a four-note musical phrase
A phrase feels like a small musical sentence, with a beginning, direction and an ending. Try this original pattern if your drum contains these degrees in a comfortable octave: 1 3 5 3 | 1 – 0 0. The first bar has four quarter-note strikes. In the second, play 1 for two beats, then count two rests. Keep breathing naturally through the phrase.
Repeat four times. Change just one element on the next pass: replace the final 3 with 2, keep the pitches and soften the ending, or keep the rhythm and choose another available pitch. A wave-shaped alternative is 1 3 1 5. A spacious alternative is 1 0 3 0, which has two strikes and two rests rather than four sounding notes.
Four quarter notes occupy four beats in this meter; four eighth notes occupy two beats. A four-note idea need not fill an entire bar, and its ending need not be the centre or lowest tongue. Choose the pitch that gives the phrase the ending you enjoy.
Choose a melody that fits your available notes
Check the melody’s degrees, accidentals and octave range against the instrument. Jianpu can be transposed: a melody written with 1=F can be played with 1=C when the required relative degrees and range are available. With recorded accompaniment or another musician, agree on the actual sounding key and tuning reference. An accompaniment in D major calls for D-major sounding pitches even if you are reading a movable number pattern; a C-major drum will need a compatible transposed backing track instead. An A4=432 Hz reference and an A4=440 Hz reference also require deliberate coordination.
The familiar public-domain “Twinkle, Twinkle, Little Star” tune uses degree 4. Its opening four bars in the quarter-note pattern are 1 1 5 5 | 6 6 5 – | 4 4 3 3 | 2 2 1 –. A drum containing only degrees 1, 2, 3, 5 and 6 cannot reproduce that version unchanged. The familiar “Ode to Joy” melody also needs degrees outside that pentatonic collection, including 4 and 7 in its extended melody. The issue is available notes, not a need for complicated modulation.
Hum a short phrase, count its rhythm, locate each pitch and then play it slowly. When a song exceeds your range, choose a compatible arrangement or another melody. The original short exercises above give you an immediate way to make music with a limited pitch collection.
A ten-minute practice you can make your own
| Minutes | Practice | Listen for |
|---|---|---|
| 1–2 | Settle the drum, check the map and play single notes | Comfortable reach and clear release |
| 3–4 | Ascend and descend through available pitches | Even timing and familiar positions |
| 5–6 | Repeat a two-note loop | Relaxed hand changes and counted rests |
| 7–8 | Play a four-note phrase and change one element | Direction, contrast and an ending |
| 9 | Improvise with those available notes | A small melody you enjoy |
| 10 | Play an ending and listen to the remaining resonance | A calm close to the session |

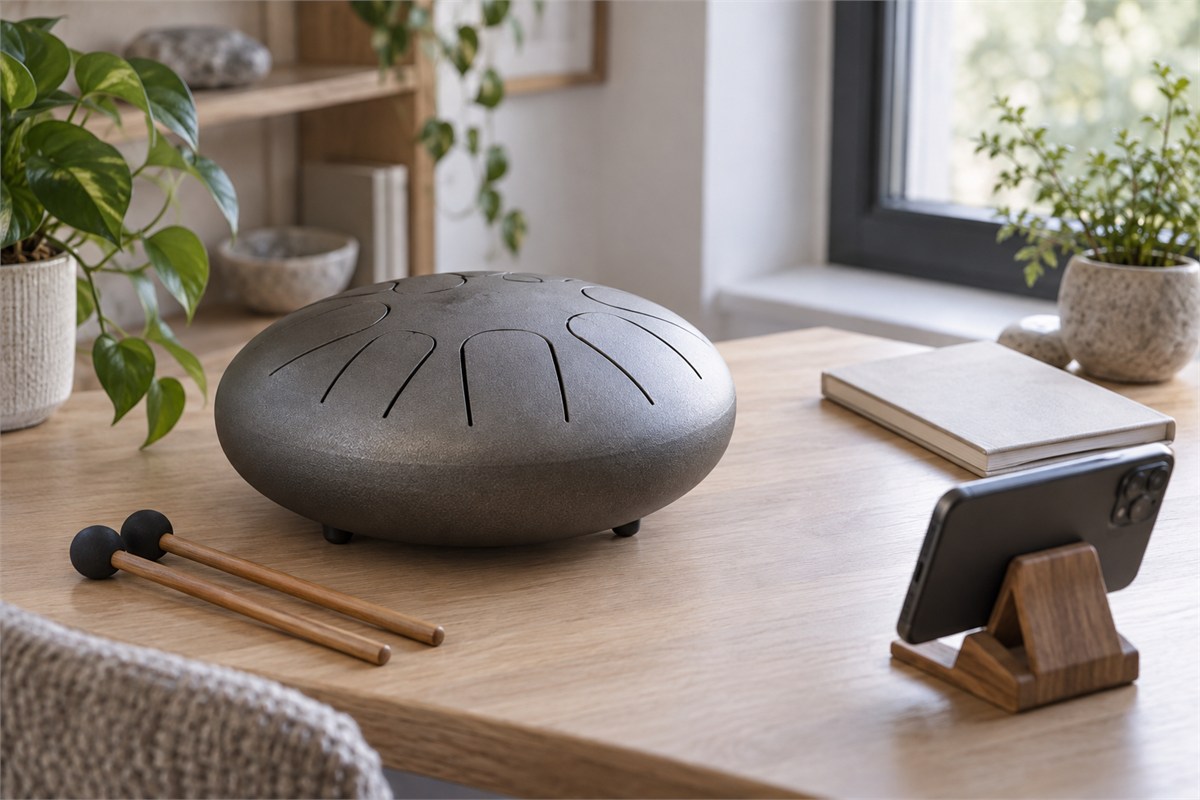

Use this as an adjustable routine. A 10–15-minute session can give you room to repeat a difficult transition, while a shorter session still leaves space for a pleasing phrase. Progress comes at your own pace. A recording can reveal one useful next step: a steadier pulse, a lighter grip or a more deliberate pause.
Care, shared spaces and family music

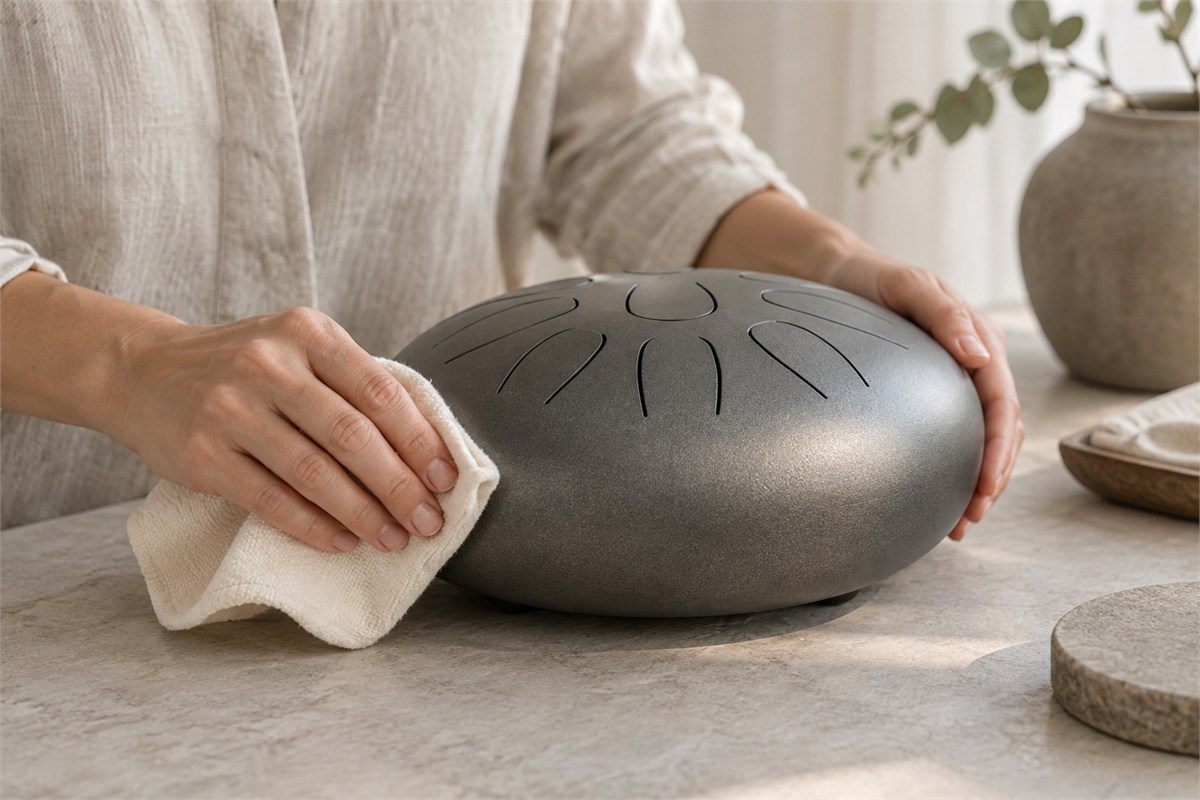

Wipe the surface with a clean, soft cloth after playing and store it dry, away from strong heat and knocks. Use oil or another surface treatment only when the maker recommends it for that finish. Keep hands clean and dry before playing, and dry the instrument after contact with perspiration. Finger sleeves, gloves and stands also need to suit the specific instrument. For a drum sold as “titanium steel” (钛金钢), use the maker’s actual alloy and finish specifications to choose care products. Carbon steel and stainless-steel instruments also need care suited to their surface. The finish, storage and handling all matter to long-term condition.
Choose a gentle volume in shared spaces, keep the instrument away from anyone’s ears, and supervise children with mallets, detachable accessories, small parts and straps. Give every player room to move. A quiet turn-taking game—one person offers a short phrase and the other answers—can turn practice into a warm moment together.
If the drum uses an A4=432 Hz tuning reference, that identifies the frequency assigned to A4 when its other pitches are tuned. It is a musical tuning convention. Choose a matching accompaniment and enjoy the sound that draws you in. Let the instrument accompany a wish for a more peaceful daily rhythm: a few minutes to listen, a melody to share, and a small ritual you look forward to returning to.
For another way to welcome sound into a quiet corner, a Tibetan meditation bell offers a centred ringing tone, while a rain drum invites a different relationship with water and rhythm. Choose the sound that feels like a companion to the moments you want to cherish.
